EMC Testing for Electrical Components: A Comprehensive Guide

Introduction to EMC Testing

EMC testing for electrical components function properly in their intended environments without causing or suffering from electromagnetic interference (EMI). This is a crucial process in product development, particularly for industries such as aerospace, automotive, healthcare, and consumer electronics.

What is EMC Testing?

EMC testing evaluates an electrical component's ability to operate correctly in the presence of electromagnetic disturbances while ensuring it does not emit excessive EMI that could affect other devices.

Importance of EMC Testing

1. Regulatory Compliance – Ensures products meet international standards like FCC, CE, and IEC.

2. Product Reliability – Guarantees stable operation in real-world environments.

3. Safety Assurance – Prevents malfunctions due to electromagnetic interference.

4. Market Access – Required for product certification and global distribution.

Key EMC Testing Standards

Various regulatory bodies establish EMC standards to ensure safety and compliance. The most recognized ones include:

• IEC 61000 Series – Covers general EMC requirements.

• CISPR 22/32 – Standards for IT and multimedia equipment.

• FCC Part 15 & 18 – US regulations for radio frequency emissions.

• MIL-STD-461 – Military standard for defense-related equipment.

• ISO 11452 – Automotive EMC standards.

Types of EMC Testing

1. Emission Testing

Measures the amount of electromagnetic radiation a device emits, ensuring it stays within regulatory limits.

• Conducted Emission – Evaluates emissions through power lines.

• Radiated Emission – Measures emissions through the air using antennas.

2. Immunity Testing

Assesses a device’s resilience to external electromagnetic disturbances.

• Electrostatic Discharge (ESD) Testing – Simulates electrostatic discharges that can damage electronics.

• Radiated Immunity Testing – Ensures the component functions in high electromagnetic fields.

• Conducted Immunity Testing – Assesses resistance to conducted disturbances from power lines.

3. Susceptibility Testing

Identifies how vulnerable a device is to electromagnetic interference, helping manufacturers improve shielding and circuit designs.

4. Transient and Surge Testing

Evaluates how well a device withstands power surges, lightning strikes, and sudden voltage spikes.

EMC Testing Process

Step 1: Pre-Compliance Testing

• Performed early in product development to identify potential EMC issues before final testing.

Step 2: Laboratory Testing

• Conducted in an accredited EMC testing facility using specialized chambers and equipment.

Step 3: Certification and Approval

• Products that pass EMC tests receive necessary certifications, allowing them to enter global markets.

EMC Testing Equipment

To perform EMC testing, specialized instruments are used, including:

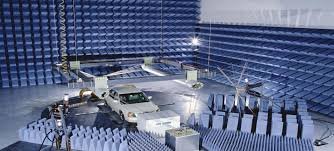

• Anechoic Chambers – Shielded rooms that minimize external interference.

• Spectrum Analyzers – Detect and measure electromagnetic emissions.

• EMC Antennas – Capture and measure radiated emissions.

• Surge Generators – Simulate voltage spikes for surge immunity testing.

Challenges in EMC Testing

• High Testing Costs – EMC compliance testing can be expensive.

• Design Complexity – Ensuring compliance without compromising performance.

• Regulatory Updates – Frequent changes in global EMC regulations.

• Interference from Multiple Sources – Identifying and mitigating interference from different electronic components.

Best Practices for EMC Compliance

1. Use Shielding Techniques – Implement metal enclosures or EMI gaskets.

2. Proper Grounding and Bonding – Reduces unwanted noise and interference.

3. Employ EMI Filters – Minimize conducted emissions.

4. Optimize PCB Layouts – Reduce electromagnetic emissions through strategic design.

5. Pre-Compliance Testing – Identify and fix issues early in the development cycle.

Conclusion

EMC testing is a vital step in ensuring electrical components meet safety, regulatory, and performance requirements. By understanding the different types of EMC tests, following best practices, and utilizing the right equipment, manufacturers can develop compliant and high-performing products for the global market.
